Discover AWS Access Patterns with Identity Security

Is this page helpful?

Teleport Identity Security scans the IAM users, groups, roles, policies, and resources in your AWS account and renders them as a graph so you can answer questions such as:

What resources are accessible to AWS users and roles?
Which resources can be reached via identities associated with EC2 instances?
What AWS resources can Teleport users access when connecting to EC2 nodes?

Two Identity Security components take part in this integration:

The Access Graph Service is the backend that stores and analyzes the resources imported from AWS. Teleport Enterprise (Cloud) runs it for you; self-hosted clusters deploy it alongside Teleport.
Identity Activity Center is the Access Graph Service component that ingests, stores, and analyzes activity logs from sources such as AWS CloudTrail, Amazon EKS, Okta, and GitHub, and correlates them with the access paths in the graph. In the Teleport Web UI, this activity appears under Identity Security > Investigate. Self-hosted clusters must enable Identity Activity Center on the Access Graph Service before using the optional steps in this guide.

Importing AWS resources requires the Access Graph Service, a Teleport Discovery Service, and a Teleport integration with your AWS account. This guide shows you how to set up each of them, plus the optional CloudTrail and EKS audit log integrations for Identity Activity Center.

Access Graph is a feature of the Teleport Identity Security product available to Teleport Enterprise edition customers.

To verify that Access Graph is set up correctly for your cluster, sign in to the Teleport Web UI, click the Identity Security sidebar button, and then the Browse menu item. Identities, resources, etc. should be listed.

How it works

Access Graph synchronizes IAM policies, groups, users, roles, EC2 instances, EKS clusters, RDS databases, S3 buckets, and KMS keys from your AWS account and visualizes them using the graph representation described in the Identity Security usage page.

The import process has two required steps and two optional ones.

Polling cloud APIs

The Teleport Discovery Service scans the configured AWS accounts every 15 minutes and retrieves the following resources:

Users
Groups
User Groups
IAM Roles
IAM Policies
EC2 Instances
EKS Clusters
RDS Databases
S3 Buckets
KMS Keys

Once all resources are fetched, the Discovery Service pushes them to Access Graph so the graph reflects the current state of your AWS environment.

Importing resources

Access Graph evaluates the IAM policies, identities, and resources retrieved from your AWS account and builds the graph from them.

Importing AWS CloudTrail logs (optional)

If CloudTrail is configured to log activity in your AWS account, it delivers log files to an S3 bucket. To process trail data in near real time, you enable Amazon SNS notifications on the trail so that a notification is sent whenever a new log file is written, and subscribe an SQS queue to that SNS topic to buffer the notifications.

The Discovery Service polls the SQS queue through the Teleport AWS integration. Each message contains the bucket name and object key of a new CloudTrail log file, which the Discovery Service fetches directly from S3 and forwards to Identity Activity Center. Identity Activity Center parses and stores the events and makes them available in the Investigate view, giving you continuous visibility into activity across AWS services, including login attempts, API calls, and infrastructure changes.

Importing Amazon EKS API server audit logs (optional)

If EKS is configured to send API server audit logs to CloudWatch Logs, the Discovery Service fetches the logs continuously and forwards them to Identity Activity Center, which parses and stores them for audit and security analysis. This gives you continuous visibility into activity within your EKS clusters alongside the rest of your AWS activity.

Prerequisites

A running Teleport Enterprise cluster v18.0.0 or later.
Identity Security enabled for your account.
For self-hosted clusters:
- An up-to-date license.pem in the Auth Service configuration.
- A running Access Graph node v1.28.0 or later. See the Identity Security page for details on how to set up Access Graph.
- The node running the Access Graph Service must be reachable from the Teleport Auth Service and from the machine running the Discovery Service.
An AWS principal with permission to manage CloudTrail, SNS, SQS, EKS, S3, KMS and IAM in the target account. The AWS CLI steps in this guide assume the AWS CLI is installed and authenticated against that account.
For the optional Identity Activity Center integrations (Steps 2 and 3):
- Identity Activity Center enabled on your Access Graph Service. For self-hosted clusters, see Self-Hosting Identity Activity Center.
- An existing CloudTrail trail, or permission to create one.
- If your trail delivers log files to an S3 bucket or publishes to an SNS topic owned by a different AWS account, the ability to edit the resource policies in that account. See the cross-account notes at the start of Step 2.

Steps 2 and 3 are optional and only apply if you use Identity Activity Center. Step 4 asks for values produced in Step 2, so complete Step 2 before Step 4.

Step 1/4. Configure the Discovery Service (self-hosted only)

warning

If you have a cloud-hosted Teleport Enterprise cluster, skip this step. Cloud-hosted Teleport Enterprise already operates a properly configured Discovery Service within your cluster.

To activate the Teleport Discovery Service, add a top-level discovery_service section to the teleport.yaml configuration used by the Auth Service. This service monitors dynamic discovery_config resources whose discovery_group matches discovery-group:

discovery_service:
  enabled: true
  discovery_group: discovery-group

If you already operate a Discovery Service within your cluster, you can reuse it as long as the following requirements are met:

In Step 3 and Step 4, you use the existing Discovery Service's discovery_group as discovery-group.
The Access Graph Service is reachable from the machine where the Discovery Service runs.

Step 2/4. Integrate CloudTrail events for Identity Activity Center (optional)

The Identity Activity Center CloudTrail integration can use an existing CloudTrail trail or a new one. Trails can be scoped to a single AWS account or configured as an AWS Organizations trail to collect events from multiple accounts. If you already have a trail, we recommend reusing it to reduce costs.

By the end of this step, you will have recorded the following values, which the setup wizard asks for in Step 4:

The URL of the SQS queue that receives trail notifications, in the form https://sqs.<region>.amazonaws.com/<account-id>/<queue-name>. The setup wizard requires the URL, not the ARN.
The ARN of the S3 bucket where the trail delivers log files.
The ARN of the KMS key that encrypts the S3 bucket, if the bucket uses KMS, and the ARN of the KMS key that encrypts the SQS queue, if you enable queue encryption. The two are independent: an existing trail's bucket may already use KMS even if you leave the queue unencrypted.

Although optional, KMS encryption for both the SQS queue and the S3 bucket is strongly recommended.

The instructions in this step assume that:

The trail, its S3 bucket, its SNS topic, and the SQS queue you create all belong to the same AWS account.
That account is in the commercial AWS partition. In AWS GovCloud, replace the arn:aws: prefix in every ARN in this guide with arn:aws-us-gov:.

If your trail delivers to a bucket or publishes to a topic in another account, which is common with AWS Organizations trails and centralized logging accounts, the owning account must also grant access in its resource policies. The IAM policy in Step 4 alone is not sufficient. In the owning account:

The bucket policy must allow the Teleport integration role to read log files.
The bucket's KMS key policy, if the bucket uses KMS, must allow the Teleport integration role to decrypt log files.
The topic policy must grant sns:Subscribe to the account that owns the SQS queue.

Follow the cross-account procedures in the AWS S3, KMS, and SNS documentation for those grants.

The instructions below use the AWS Console. To complete this step with the AWS CLI instead, for example when scripting the setup, follow Configure CloudTrail notifications with the AWS CLI at the end of this guide, then continue with Step 3.

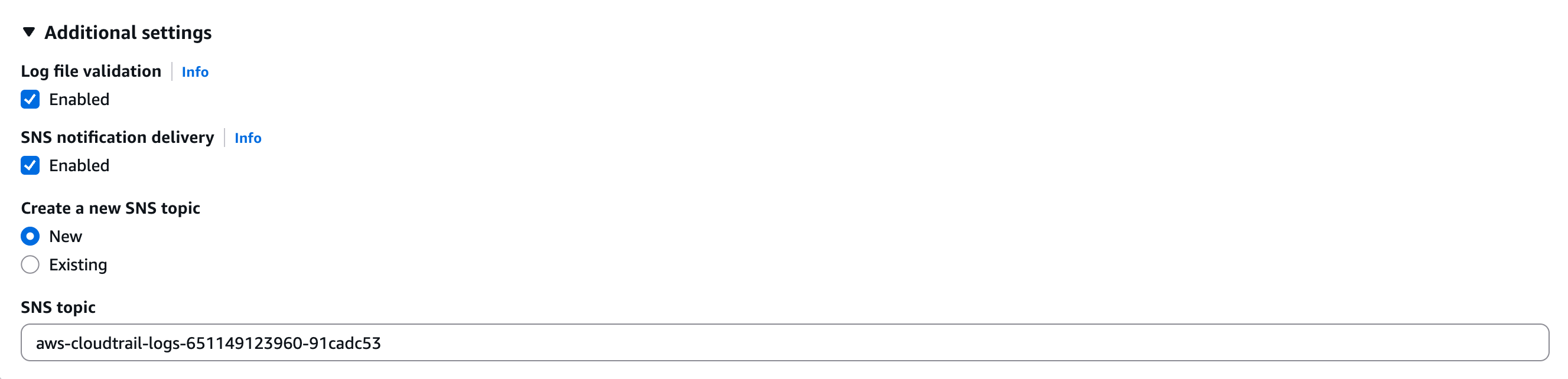

In the CloudTrail console, open your trail's settings. If SNS notification delivery is already enabled, note the existing topic and reuse it in the following steps; selecting a different topic would stop existing subscribers from receiving notifications. If it is not enabled, enable it and create a new SNS topic.
Still in the trail's details page, record the values Step 4 needs from the trail:
- Under Storage location, note the S3 bucket name. The bucket ARN is arn:aws:s3:::<bucket-name>.
- Under Log file SSE-KMS encryption, if a KMS key is shown, open it in the KMS console and record its ARN. If no key is shown, open the bucket in the S3 console, go to Properties, and check Default encryption. If the encryption type is SSE-KMS, open the key and record its ARN. In both cases record the ARN shown in the KMS console, not the key ID or alias.
In the SQS console, create a new Standard queue. The queue must be dedicated to trail SNS notifications. From the queue's details page, record the URL and the ARN for Step 4.
Subscribe the queue to the SNS topic from the SQS console: open the queue, select the SNS subscriptions tab, and choose Subscribe to Amazon SNS topic.

Subscribe from the SQS console, not the SNS console. The SQS console adds the access policy statement that allows the topic to send messages to the queue; the SNS console does not, and notifications are silently dropped. The generated statement grants sqs:SendMessage to sns.amazonaws.com with an aws:SourceArn condition on the topic.

If the topic and queue are in different regions and either is an opt-in region, edit the queue's Access policy and replace the principal with the regionalized form described in Allow the topic to send messages to the queue.
Open the new subscription in the SNS console and select Enable raw message delivery. This setting is required; without it, Identity Activity Center cannot parse the notifications.
(Optional) Enable KMS encryption on the queue using a customer-managed key. The AWS-managed alias/aws/sqs key cannot be used, because its key policy cannot be edited to grant SNS access. In the KMS console, edit the key policy and add a statement allowing the SNS service principal to call kms:GenerateDataKey* and kms:Decrypt, with an aws:SourceArn condition equal to the trail's SNS topic ARN. Use the same principal as in the queue's access policy (sns.amazonaws.com, or the regionalized form for opt-in cross-region pairs). Without this statement SNS cannot deliver messages to the encrypted queue. Record the key's ARN for Step 4.

Step 3/4. Integrate Amazon EKS CloudWatch audit logs for Identity Activity Center (optional)

Enable API server audit logging on each EKS cluster whose activity you want in Identity Activity Center.

AWS CLI
AWS Console

Run the following command for each cluster, replacing eks-cluster-name with the cluster name and aws-region with its region:

aws eks update-cluster-config \  --region aws-region \  --name eks-cluster-name \  --logging '{"clusterLogging":[{"types":["audit"],"enabled":true}]}'

The default setup performed in Step 4 fetches audit logs from all EKS clusters in the configured AWS regions. If you want to be more selective, create a discovery_config resource whose tags match the tags on the EKS clusters. Only clusters matching the tags have their API server audit logs imported into Identity Activity Center.

resource-name: The name of the discovery_config resource.
discovery-group: The discovery_group of the Discovery Service configured in Step 1.
regions: A comma-separated list of AWS regions in which to discover EKS clusters, for example us-east-1, us-west-2.
tag-name: The name of a tag that EKS clusters must have, or "*" for any tag.
tag-value: The value or list of values that the named tag must have, or "*" for any value. If a list, only one of the values needs to match. Add one tag-name: tag-value line per tag to match.

kind: discovery_config
version: v1
metadata:
  name: resource-name
spec:
  discovery_group: discovery-group
  access_graph:
    aws:
      - regions: [regions]
        eks_audit_logs:
          tags:
            tag-name: tag-value

Save this YAML configuration in a file named discovery_config.yaml.
Apply the configuration to your cluster, replacing teleport.example.com with the domain name of your Teleport Proxy Service:
```
tctl create --proxy=teleport.example.com -f discovery_config.yaml
```

Teleport imports the last seven days of audit logs from matching EKS clusters and then continues importing new logs for as long as the cluster tags match the discovery configuration.

Step 4/4. Set up Access Graph AWS Sync

This step uses the setup wizard in the Teleport Web UI. The wizard does three things: it creates or selects a Teleport AWS integration, it attaches the IAM policies listed at the end of this step to the integration's IAM role, and it creates a discovery_config resource whose access_graph.aws section tells the Discovery Service which regions and log sources to import.

If you cannot use a browser, for example when automating the setup, you can create the same resources yourself: create the Teleport AWS integration, attach the IAM policies with the commands shown below, and create a discovery_config resource with tctl or the Terraform provider. See the discovery_config reference for the access_graph.aws fields, including integration, regions, cloud_trail_logs, and eks_audit_logs.

In the Teleport Web UI, click Identity Security in the sidebar, then click Integrations.
Click Setup new integration and select AWS. If you have not configured a Teleport AWS integration yet, the wizard prompts you to create one. Otherwise, select an existing integration.
After you select or create the integration, the wizard displays a bash script to run in AWS CloudShell. The script attaches the IAM policies listed below to the IAM role used by the Teleport AWS integration. If you prefer to attach them yourself, see Attaching the policies manually below.
If you enabled the CloudTrail integration, enter the SQS queue URL, S3 bucket ARN, and KMS key ARNs you recorded in Step 2. Enter the queue URL (https://sqs.…), not the queue ARN; the wizard rejects an ARN in that field.
Once the IAM policies are attached, specify the AWS regions from which Teleport should import resources. This selection only affects regional resources and does not affect global resources such as S3 buckets, IAM policies, or IAM users.
If you are running a self-hosted cluster, enter the discovery_group configured in Step 1.

Attaching the policies manually

The CloudShell script attaches the policies below as inline policies on the IAM role used by the Teleport AWS integration. To do the same yourself, save each policy document you need to a file and attach it with the AWS CLI, replacing integration-role-name with the name of that role:

aws iam put-role-policy \  --role-name integration-role-name \  --policy-name TeleportAccessGraphAWSSync \  --policy-document file://aws-sync-policy.json
Only if you completed Step 2:
aws iam put-role-policy \  --role-name integration-role-name \  --policy-name TeleportAccessGraphCloudTrail \  --policy-document file://cloudtrail-policy.json
Only if you completed Step 3:
aws iam put-role-policy \  --role-name integration-role-name \  --policy-name TeleportAccessGraphEKSAuditLogs \  --policy-document file://eks-audit-policy.json

IAM permissions required for AWS Sync

The policy consists of read-only actions that let Teleport retrieve information from resources in your AWS account:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "ec2:DescribeInstances",
        "ec2:DescribeImages",
        "ec2:DescribeTags",
        "ec2:DescribeSnapshots",
        "ec2:DescribeKeyPairs",

        "eks:ListClusters",
        "eks:DescribeCluster",
        "eks:ListAccessEntries",
        "eks:ListAccessPolicies",
        "eks:ListAssociatedAccessPolicies",
        "eks:DescribeAccessEntry",

        "rds:DescribeDBInstances",
        "rds:DescribeDBClusters",
        "rds:ListTagsForResource",
        "rds:DescribeDBProxies",

        "dynamodb:ListTables",
        "dynamodb:DescribeTable",

        "redshift:DescribeClusters",
        "redshift:Describe*",

        "s3:ListAllMyBuckets",
        "s3:GetBucketPolicy",
        "s3:ListBucket",
        "s3:GetBucketLocation",
        "s3:GetBucketVersioning",
        "s3:GetBucketTagging",
        "s3:GetBucketPolicyStatus",
        "s3:GetBucketAcl",

        "iam:ListUsers",
        "iam:GetUser",
        "iam:ListRoles",
        "iam:ListGroups",
        "iam:ListPolicies",
        "iam:ListGroupsForUser",
        "iam:ListInstanceProfiles",
        "iam:ListUserPolicies",
        "iam:GetUserPolicy",
        "iam:ListAttachedUserPolicies",
        "iam:ListGroupPolicies",
        "iam:GetGroupPolicy",
        "iam:ListAttachedGroupPolicies",
        "iam:GetPolicy",
        "iam:GetPolicyVersion",
        "iam:ListRolePolicies",
        "iam:ListAttachedRolePolicies",
        "iam:GetRolePolicy",
        "iam:ListSAMLProviders",
        "iam:GetSAMLProvider",
        "iam:ListOpenIDConnectProviders",
        "iam:GetOpenIDConnectProvider",

        "kms:ListKeys",
        "kms:DescribeKey",
        "kms:ListResourceTags",
        "kms:ListAliases",
        "kms:GetKeyPolicy"
      ],
      "Resource": "*"
    }
  ]
}

IAM permissions required for the CloudTrail integration

If you completed Step 2, the following additional permissions are required. Replace the placeholders with the values you recorded in Step 2:

aws-sqs-queue: The ARN (not the URL) of the SQS queue subscribed to the SNS topic that receives CloudTrail notifications. IAM policies reference the queue by ARN.
aws-s3-trail-bucket: The ARN of the S3 bucket where CloudTrail delivers its log files.
aws-sqs-kms-queue-key: The ARN of the KMS key used to encrypt messages in the SQS queue.
aws-s3-kms-key: The ARN of the KMS key used to encrypt objects in the S3 bucket that stores CloudTrail logs. Teleport needs kms:Decrypt on this key to download the log files.

Include a KMS key ARN in the KMS statement's Resource list for each resource that uses KMS. If only one of the queue or bucket is encrypted, remove the unused ARN but keep the statement. Omit the KMS statement entirely only if neither the queue nor the bucket uses KMS.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "sqs:ReceiveMessage",
        "sqs:DeleteMessage",
        "sqs:SendMessage"
      ],
      "Resource": "aws-sqs-queue"
    },
    {
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:GetObjectVersion",
        "s3:ListBucket",
        "s3:ListBucketVersions",
        "s3:GetBucketLocation"
      ],
      "Resource": [
        "aws-s3-trail-bucket",
        "aws-s3-trail-bucket/*"
      ]
    },
    {
      "Effect": "Allow",
      "Action": [
        "kms:Decrypt",
        "kms:DescribeKey",
        "kms:GenerateDataKey",
        "kms:GenerateDataKeyWithoutPlaintext"
      ],
      "Resource": [
        "aws-sqs-kms-queue-key",
        "aws-s3-kms-key"
      ]
    }
  ]
}

IAM permissions required for the EKS audit log integration

If you completed Step 3, the following additional permission is required:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "logs:FilterLogEvents"
      ],
      "Resource": "arn:aws:logs:*:*:log-group:/aws/eks/*"
    }
  ]
}

Configure CloudTrail notifications with the AWS CLI

This section is the AWS CLI equivalent of Step 2. Read the introduction to Step 2 first: it lists the values you need to record for Step 4 and the same-account and cross-account assumptions that also apply here. When you finish this section, continue with Step 3.

Values used in this section

The commands below use the following values:

aws-region: The AWS region of the trail and the SQS queue. For an AWS Organizations trail, use the home region of the trail in the management account.
sns-region: The AWS region of the SNS topic. CloudTrail allows a trail's topic to be in a different region from the trail, and SNS commands must run in the topic's region. You determine this value in Retrieve the trail's settings.
aws-account-id: The ID of the AWS account that owns the trail.
trail-name: The name of the existing CloudTrail trail.
sns-topic-name: The name of a new SNS topic to create if the trail does not already have one. SNS topic names may contain only letters, numbers, underscores, and hyphens; unlike trail names, they cannot contain periods.
sns-topic-arn: The ARN of the SNS topic that receives trail notifications. You determine this value in Retrieve the trail's settings or Create the SNS topic.
sqs-queue-name: The name of the SQS queue to create. The queue must be dedicated to trail notifications.

If you do not have a trail yet, create one by following the "Creating a trail with the AWS CLI" procedure in the AWS CloudTrail documentation, which also covers the S3 bucket policy the trail requires. Then return here with its name as trail-name.

Retrieve the trail's settings

Retrieve the trail's SNS destination, S3 bucket, and KMS key:

aws cloudtrail get-trail \  --region aws-region \  --name trail-name \  --query 'Trail.[SnsTopicARN,S3BucketName,KmsKeyId]' \  --output text

The output is three tab-separated values. Record them as follows.

SnsTopicARN: a trail has a single SNS destination, and replacing it would stop any existing subscribers (such as security or monitoring pipelines) from receiving notifications.

If this value is a topic ARN, use it as sns-topic-arn, set sns-region to the region segment of the ARN (the fourth colon-separated field, for example us-west-2 in arn:aws:sns:us-west-2:123456789012:my-topic), and skip Create the SNS topic.
If it is None, set sns-region to the same value as aws-region and create a topic in Create the SNS topic.

S3BucketName: form the bucket ARN for Step 4 as arn:aws:s3:::<bucket-name>.

KmsKeyId: if this is set, the trail encrypts log files with that key. If it is None, the trail does not encrypt log files itself, but the bucket may still encrypt objects by default. Check with the following command and note the KMSMasterKeyID value if one is present:

aws s3api get-bucket-encryption --bucket <bucket-name>

A ServerSideEncryptionConfigurationNotFoundError or an SSEAlgorithm of AES256 means no KMS key is in use for the bucket. If neither the trail nor the bucket uses KMS, skip the rest of this subsection and omit the S3 key from Step 4.

Either field may contain a key ARN, a bare key ID, or an alias. Step 4 requires the ARN, so resolve whichever identifier you found with KMS. KMS keys are regional, and a trail's bucket can be in any region, so first find the bucket's region:

aws s3api get-bucket-location --bucket <bucket-name> --query LocationConstraint --output text

S3 returns two legacy values that are not region codes: None means us-east-1, and EU means eu-west-1. Use the normalized region as <bucket-region> below. If the identifier is an alias and does not already begin with alias/, add that prefix. Record the output as the S3 KMS key ARN:

aws kms describe-key \  --region <bucket-region> \  --key-id <key-id-or-alias> \  --query KeyMetadata.Arn \  --output text

Skip this subsection if the trail already has an SNS topic.

Confirm that no topic named sns-topic-name already exists. create-topic returns an existing topic of the same name instead of failing, and the next step replaces that topic's access policy, which would break any publishers already using it:
```
aws sns get-topic-attributes \  --region sns-region \  --topic-arn arn:aws:sns:sns-region:aws-account-id:sns-topic-name
```
The command must fail with a NotFound error. If it returns attributes, a topic with that name is in use; choose a different sns-topic-name and run the check again.

Create the SNS topic and allow CloudTrail to publish to it, then set it as the trail's notification destination. set-topic-attributes replaces the default access policy that create-topic generates; this is safe here because the topic is new and same-account IAM identities authorize through their IAM policies rather than the topic policy. Use the TopicArn from the first command's output as sns-topic-arn; it has the form arn:aws:sns:sns-region:aws-account-id:sns-topic-name:

aws sns create-topic --region sns-region --name sns-topic-name
aws sns set-topic-attributes \  --region sns-region \  --topic-arn sns-topic-arn \  --attribute-name Policy \  --attribute-value '{
    "Version": "2012-10-17",    "Statement": [      {        "Sid": "AllowCloudTrailPublish",        "Effect": "Allow",        "Principal": { "Service": "cloudtrail.amazonaws.com" },        "Action": "SNS:Publish",        "Resource": "sns-topic-arn",        "Condition": {          "StringEquals": {            "aws:SourceArn": "arn:aws:cloudtrail:aws-region:aws-account-id:trail/trail-name"          }        }      }    ]  }'aws cloudtrail update-trail \  --region aws-region \  --name trail-name \  --sns-topic-name sns-topic-arn

Create the SQS queue

Confirm that no queue named sqs-queue-name already exists. create-queue returns an existing queue of the same name instead of failing, and the following subsections replace that queue's access policy and subscribe it to the trail topic. Because Teleport receives and deletes messages from the queue, reusing an unrelated queue would cause Teleport to consume its messages:
```
aws sqs get-queue-url --region aws-region --queue-name sqs-queue-name
```
The command must fail with a NonExistentQueue error. If it returns a queue URL, the name is in use; choose a different sqs-queue-name and run the check again.
Create a Standard SQS queue. Record the QueueUrl from the first command's output for Step 4, and the QueueArn from the second command's output for the queue policy and subscription below. The ARN has the form arn:aws:sqs:aws-region:aws-account-id:sqs-queue-name:
```
aws sqs create-queue --region aws-region --queue-name sqs-queue-name
aws sqs get-queue-attributes \  --region aws-region \  --queue-url https://sqs.aws-region.amazonaws.com/aws-account-id/sqs-queue-name \  --attribute-names QueueArn
```

Allow the topic to send messages to the queue

Write the queue policy to a file, then apply it. The jq command wraps the policy document as the string value that the Policy attribute expects.

If the topic region (sns-region) and the queue region (aws-region) differ and either is an opt-in region (for example ap-east-1, me-south-1, or af-south-1), replace the sns.amazonaws.com principal below with a regionalized principal. Which region to use depends on the direction of delivery:

Topic in a default-enabled region, queue in an opt-in region: use sns.aws-region.amazonaws.com (the queue region).
Topic in an opt-in region, queue in a default-enabled region: use sns.sns-region.amazonaws.com (the topic region).
Topic and queue in different opt-in regions: use sns.aws-region.amazonaws.com (the queue region).

With the generic principal, SNS cannot deliver across these region pairs and the verification count in Verify that notifications arrive stays at zero.

cat > queue-policy.json <<EOF{  "Version": "2012-10-17",  "Statement": [    {      "Sid": "AllowSNSSendMessage",      "Effect": "Allow",      "Principal": { "Service": "sns.amazonaws.com" },      "Action": "sqs:SendMessage",      "Resource": "arn:aws:sqs:aws-region:aws-account-id:sqs-queue-name",      "Condition": {        "ArnEquals": {          "aws:SourceArn": "sns-topic-arn"        }      }    }  ]}EOF
aws sqs set-queue-attributes \  --region aws-region \  --queue-url https://sqs.aws-region.amazonaws.com/aws-account-id/sqs-queue-name \  --attributes "$(jq -n --rawfile p queue-policy.json '{Policy: $p}')"

Subscribe the queue to the topic with raw message delivery enabled. Raw message delivery is required; without it, Identity Activity Center cannot parse the notifications:

aws sns subscribe \  --region sns-region \  --topic-arn sns-topic-arn \  --protocol sqs \  --notification-endpoint arn:aws:sqs:aws-region:aws-account-id:sqs-queue-name \  --attributes RawMessageDelivery=true \  --return-subscription-arn

Encrypt the queue (optional)

Encrypt the queue with a customer-managed KMS key, replacing aws-sqs-kms-queue-key with the key ARN. The AWS-managed alias/aws/sqs key cannot be used, because its key policy cannot be edited to grant SNS access.

Add the following statement to the key's policy. Without it, SNS cannot deliver messages to the encrypted queue. The Principal must match the one you used in the queue policy: use sns.amazonaws.com for same-region or default-enabled-region pairs, and the same regionalized principal otherwise. The aws:SourceArn condition limits the grant to this trail's topic:

{
  "Sid": "AllowSNSUseOfQueueKey",
  "Effect": "Allow",
  "Principal": { "Service": "sns.amazonaws.com" },
  "Action": [
    "kms:GenerateDataKey*",
    "kms:Decrypt"
  ],
  "Resource": "*",
  "Condition": {
    "ArnEquals": {
      "aws:SourceArn": "sns-topic-arn"
    }
  }
}

Retrieve the current key policy, add the statement to its Statement array, and apply the result. put-key-policy replaces the whole policy, so keep the existing statements:

aws kms get-key-policy \  --region aws-region \  --key-id aws-sqs-kms-queue-key \  --policy-name default \  --query Policy \  --output text > kms-policy.json
Edit kms-policy.json and add the statement above to the Statement array.
aws kms put-key-policy \  --region aws-region \  --key-id aws-sqs-kms-queue-key \  --policy-name default \  --policy file://kms-policy.json

Enable encryption on the queue:

aws sqs set-queue-attributes \  --region aws-region \  --queue-url https://sqs.aws-region.amazonaws.com/aws-account-id/sqs-queue-name \  --attributes KmsMasterKeyId=aws-sqs-kms-queue-key

Verify that notifications arrive

CloudTrail delivers log files roughly every five minutes, so the count below should become non-zero shortly after the trail is active:

aws sqs get-queue-attributes \  --region aws-region \  --queue-url https://sqs.aws-region.amazonaws.com/aws-account-id/sqs-queue-name \  --attribute-names ApproximateNumberOfMessages

You now have the SQS queue URL, S3 bucket ARN, and any KMS key ARNs that Step 4 asks for. Continue with Step 3.

Next steps

Explore the imported resources in the Identity Security usage page.

Was this page helpful?

How it works​

Polling cloud APIs​

Importing resources​

Importing AWS CloudTrail logs (optional)​

Importing Amazon EKS API server audit logs (optional)​

Prerequisites​

Step 1/4. Configure the Discovery Service (self-hosted only)​

Step 2/4. Integrate CloudTrail events for Identity Activity Center (optional)​

Step 3/4. Integrate Amazon EKS CloudWatch audit logs for Identity Activity Center (optional)​

Step 4/4. Set up Access Graph AWS Sync​

Attaching the policies manually​

IAM permissions required for AWS Sync​

IAM permissions required for the CloudTrail integration​

IAM permissions required for the EKS audit log integration​

Configure CloudTrail notifications with the AWS CLI​

Values used in this section​

Retrieve the trail's settings​

Create the SNS topic​

Create the SQS queue​

Allow the topic to send messages to the queue​

Subscribe the queue to the topic​

Encrypt the queue (optional)​

Verify that notifications arrive​

Next steps​
